SLIDE RAIL ™ SYSTEM

TYPICAL APPLICATIONS

  • Single probes, sensors and analytics
  • Multiple probes, sensors and analytics
  • Pumps
  • Screens
  • Suction lines
  • Float brackets
  • Strain relief
  • Hangers/hooks

PRODUCT OVERVIEW

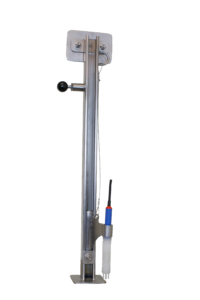

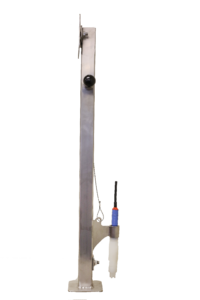

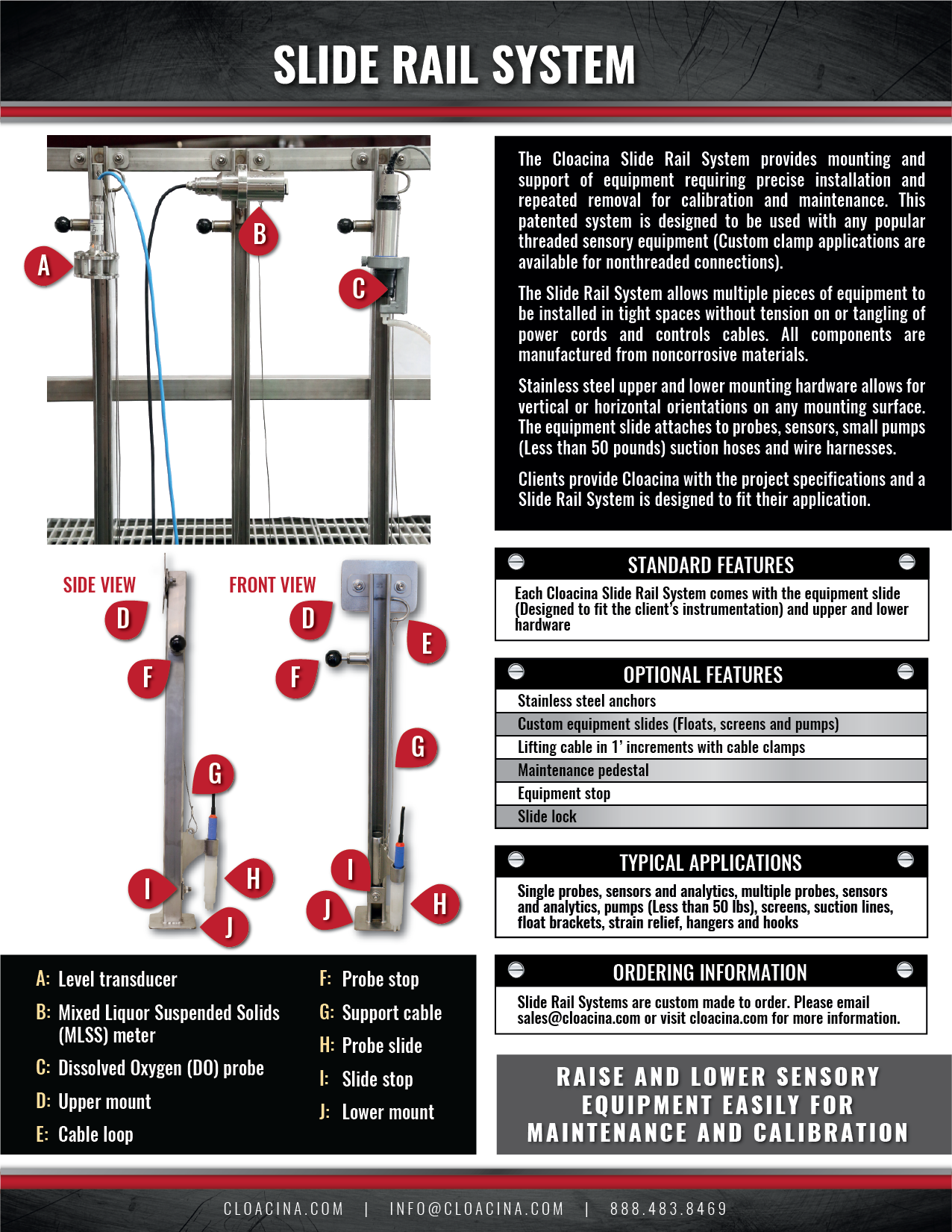

The Cloacina Slide Rail™ System provides mounting and support of equipment requiring precise installation and repeated removal for calibration and maintenance. This system is designed to be used with any popular threaded sensory equipment (Custom clamp applications are available for non-threaded as well).

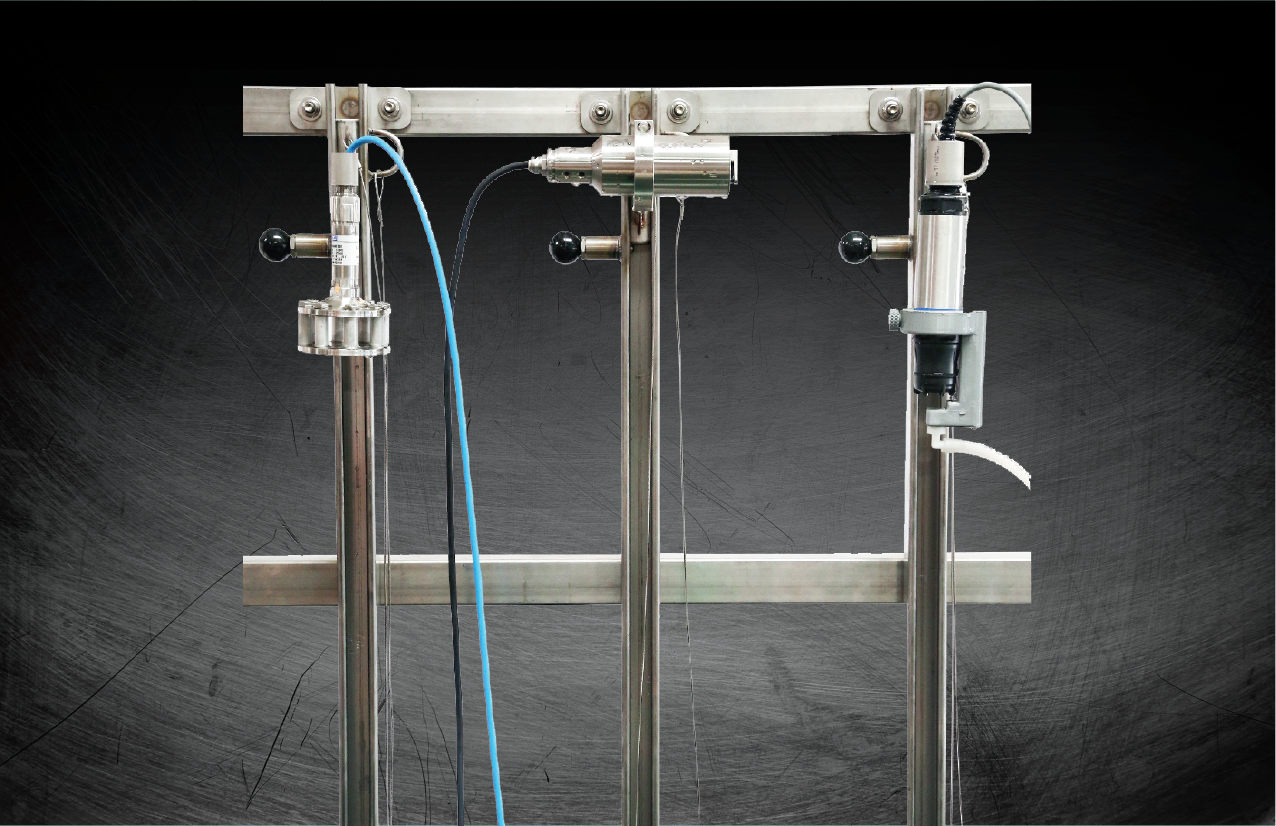

The Cloacina Slide Rail™ System allows multiple pieces of equipment to be installed in a tight space without tension on or tangling of power cords and controls cables. All components are manufactured from non-corrosive materials.

Stainless steel upper and lower mounting hardware allows for vertical or horizontal orientations on any mounting surface. The equipment slide attaches to probes, sensors, small pumps (Less than 50 lbs.) suction hoses and wire harnesses.

Clients provide Cloacina with the project specifications and a Slide Rail™ System is designed to fit their application.

UPGRADES AND OPTIONS

  • Stainless steel anchors
  • Custom equipment slides
  • Lifting cable in 1’ increments with cable clamps
  • Maintenance pedestal
  • Equipment stop
  • Slide lock

STANDARD FEATURES

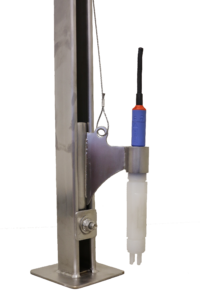

  • Equipment slide (Designed to fit your probe, float, screen, pump etc.)

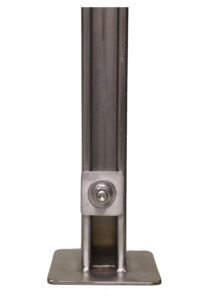

  • Upper and lower hardware


DRAWINGS AND ANIMATIONS
