ABOUT THE HEADPAC

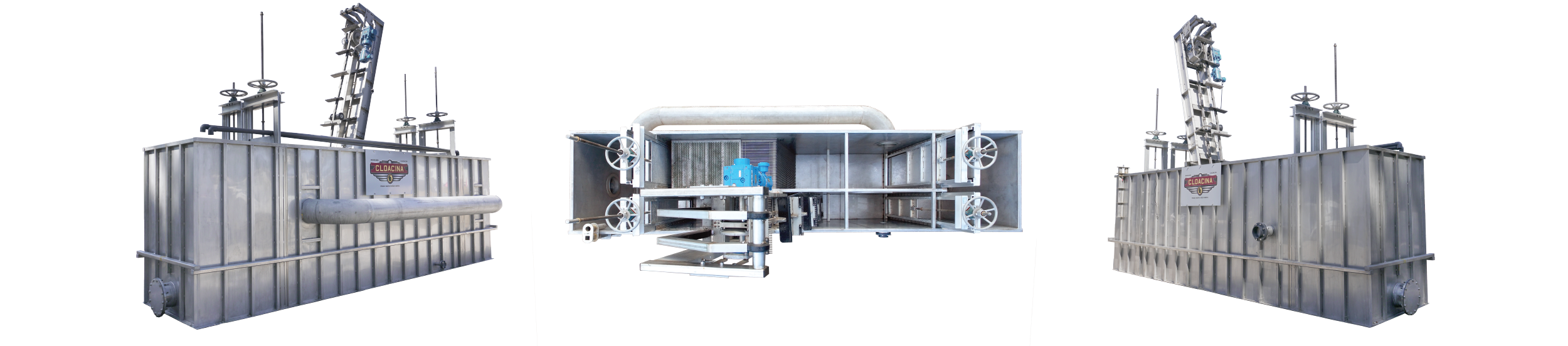

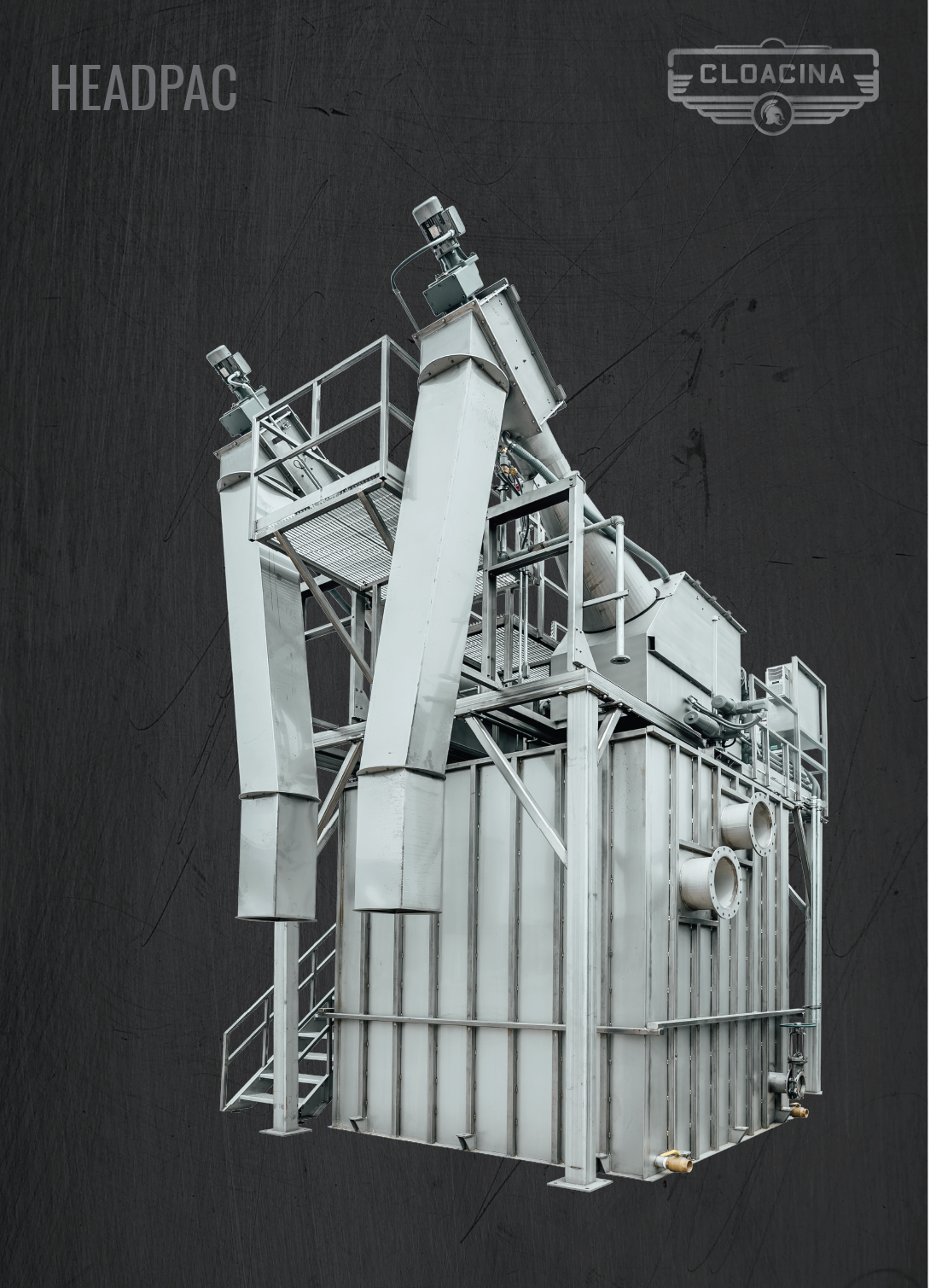

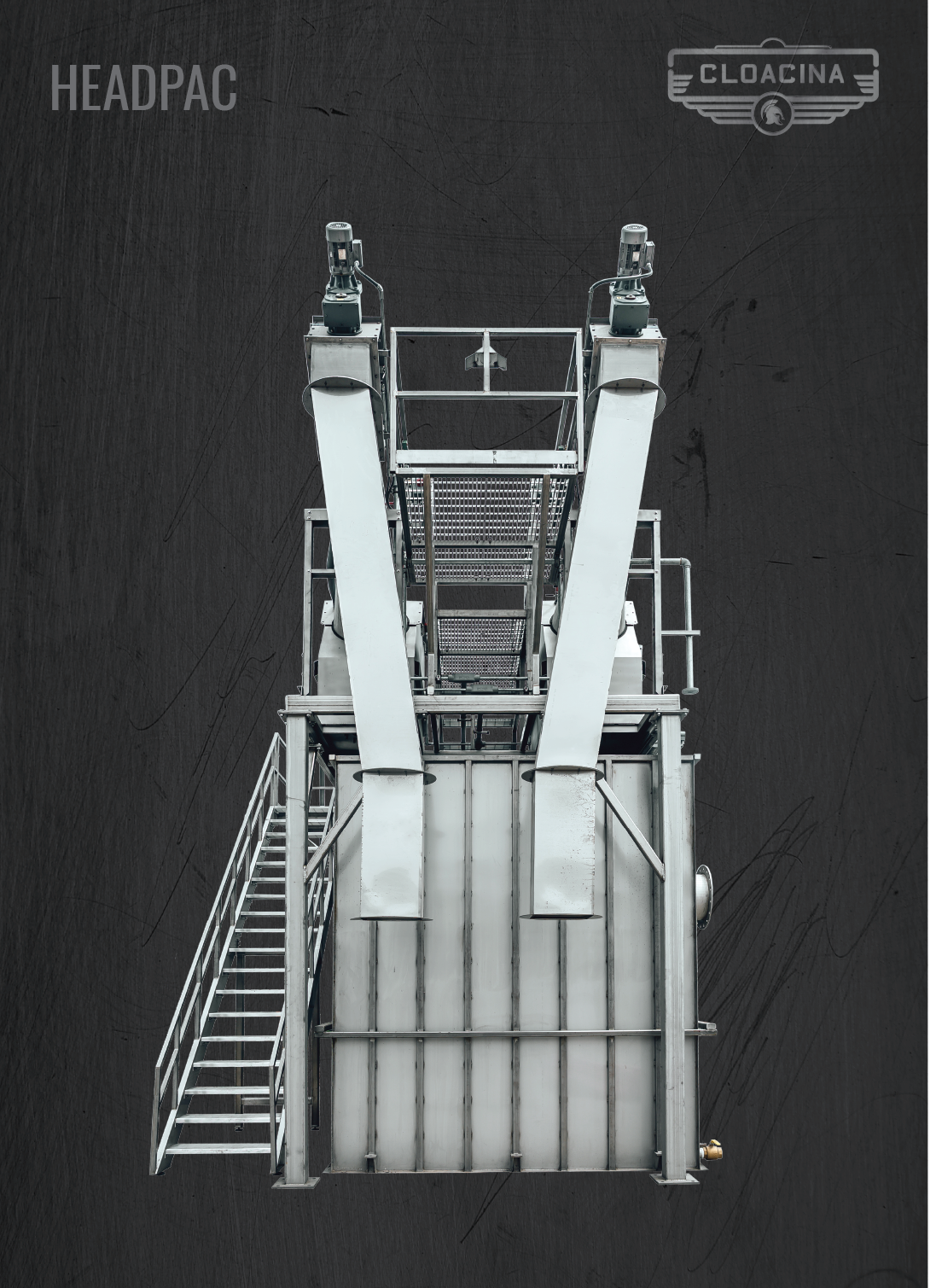

Cloacina’s HeadPac™ is a stainless steel, pre-fabricated Headworks Platform that arrives assembled and wet-tested for fast, low-impact installation.
- Mounts on EQ or Anoxic tanks, or stands alone
- Available in Simplex and Duplex configurations
- Requires minimal civil or mechanical site work
- Factory-tested and wet-tested before shipping
Whether integrated into new systems or added to existing infrastructure, HeadPac saves time, cost, and space while ensuring long-term durability.
EFFICIENT SCREENING WITH PROVEN COMPONENTS

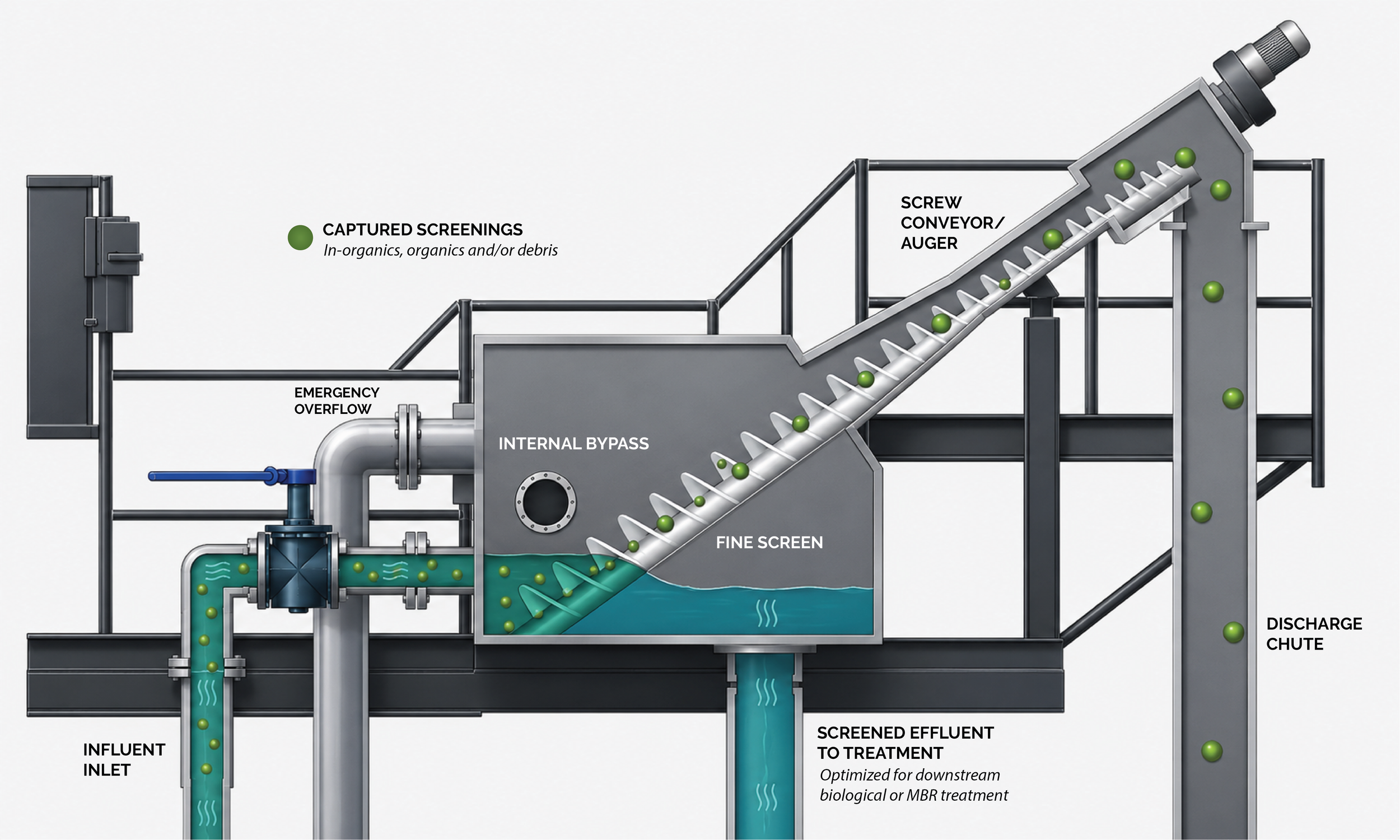

The HeadPac removes inorganics and returns organics for processing—protecting downstream equipment and reducing odor and waste.
- Equipped with washer and compactor units
- Reduces landfill-bound material and odor

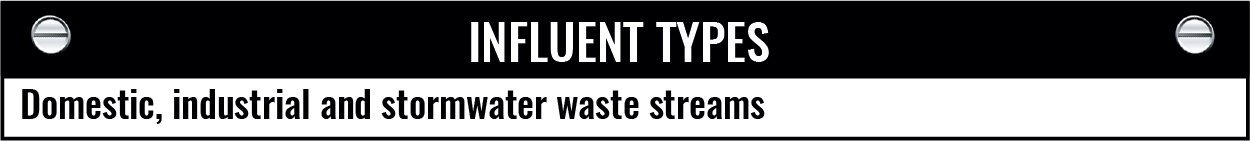

- Compatible with both domestic and industrial waste streams
- Coarse and fine screening options available
- Built with industry-proven ancillary components
FUTURE-READY & ADAPTABLE
Designed to scale with your facility, HeadPac adapts to phased builds and evolving treatment needs.
- Easily relocated to future tanks or installations
- Integrates with existing control systems
- Ensures long-term operational and capital investment value
STANDARD FEATURES
These are the core components and systems included with every HEADPAC.
- Fabricated from 304 stainless steel
- Electrochemical passivation
- Single screen
- Above-grade installation
- 2mm perforations
- Integrated washing/compaction in the auger
- Pre-wired panel for integration into larger system
- Isolation valves
- Level Switches
OPTIONAL FEATURES/EQUIPMENT
Optional features are enhancements or upgrades that can be added to the HEADPAC to meet specific operational needs and are not factored into the base cost shown.
- Installation Support
- Engineering and design services
- 316 stainless steel construction
- Coarse Screening
- Redundant screen with automatic redundancy
ADDITIONAL SPECIFICATIONS
EQUIPMENT DIMENSIONS
- Length: 15’-6” to 18’
- Width: 10’
- Height: 8’-6” to 10’-9” (without leg kit)

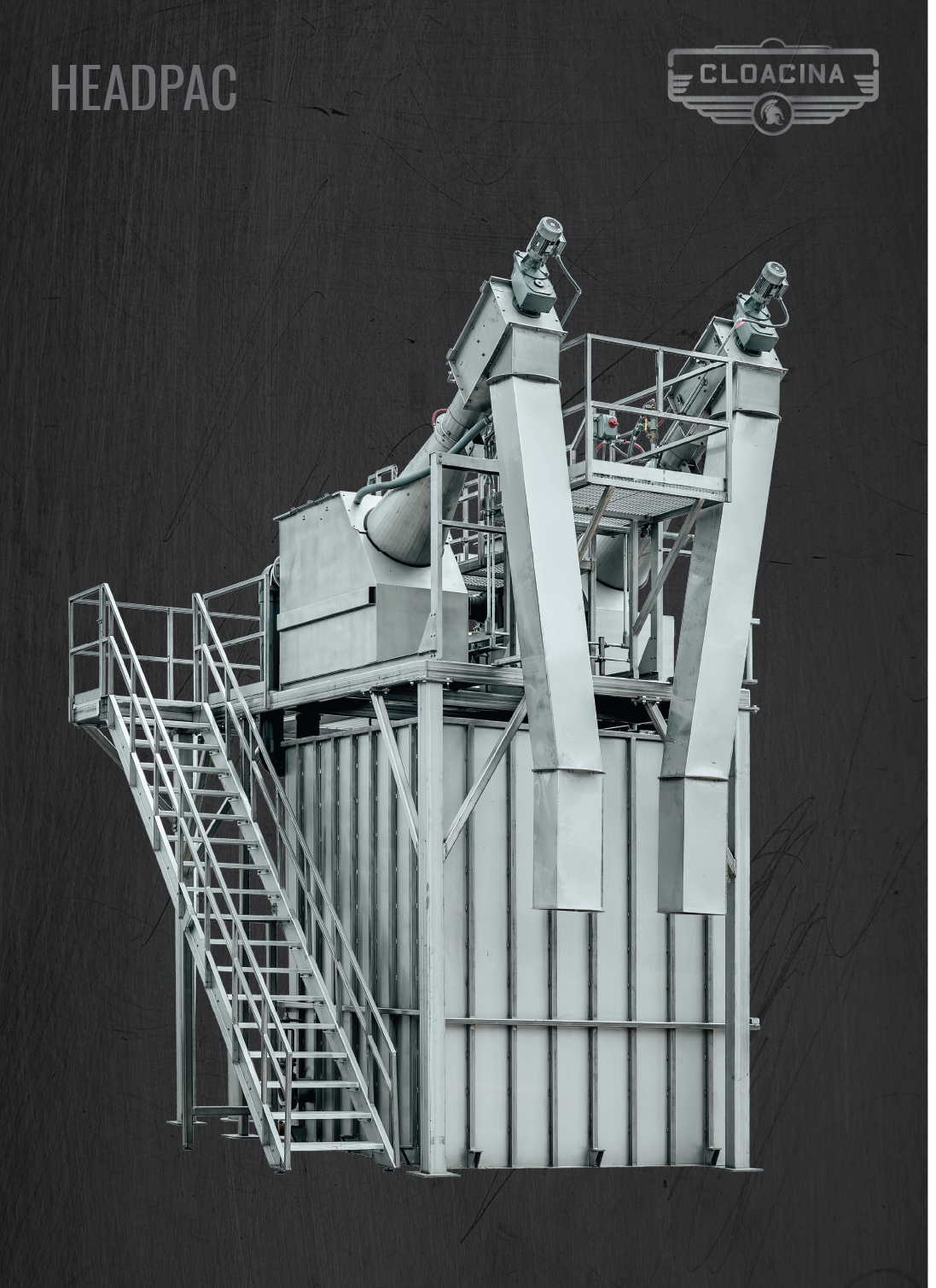

OPTIONAL LEG KIT
- Raises screen to 13’ platform elevations, includes stairs, handrail, landing.
- Allows placement next to tanks.
EQUIPMENT WEIGHT
- Shipping weight: ~12,000 to 18,000 lbs
POWER FEED
- 15A, 480v/3-phase/60Hz

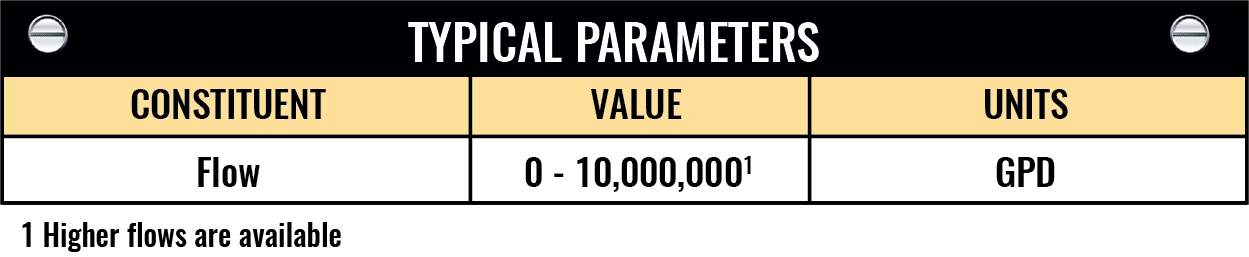

INLET SCREEN CAPACITY
- Fine: Up to 1,495 GPM / 2.15 MGD @ 2MM perforations
- Coarse: Up to 4,530 GPM / 6.5 MGD @ 6MM perforations
WET UTILITY CONNECTIONS
- Influent: 8” (all of these will vary based on configuration)
- Outlet: 12”
- Water Line Inlet: 2”
- Emergency Overflow: 8”
