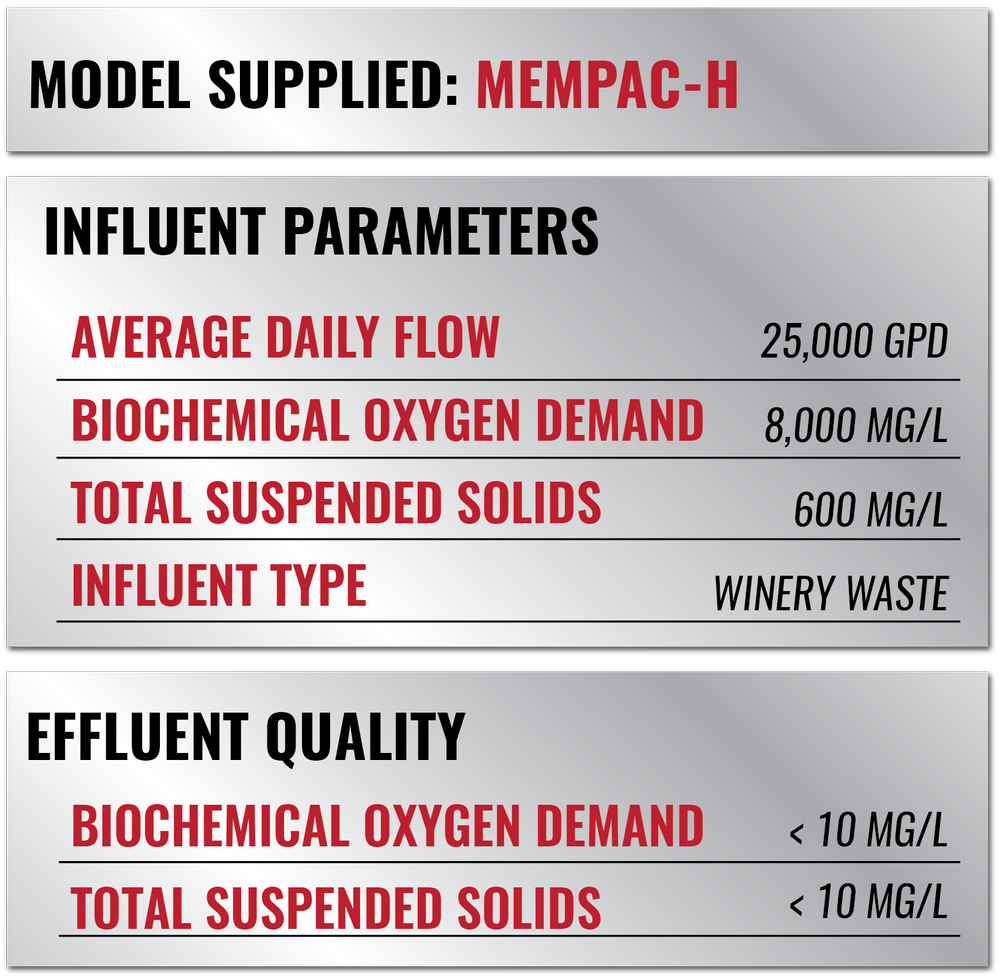

DESIGN PARAMETERS

PROJECT TEAM

OVERVIEW

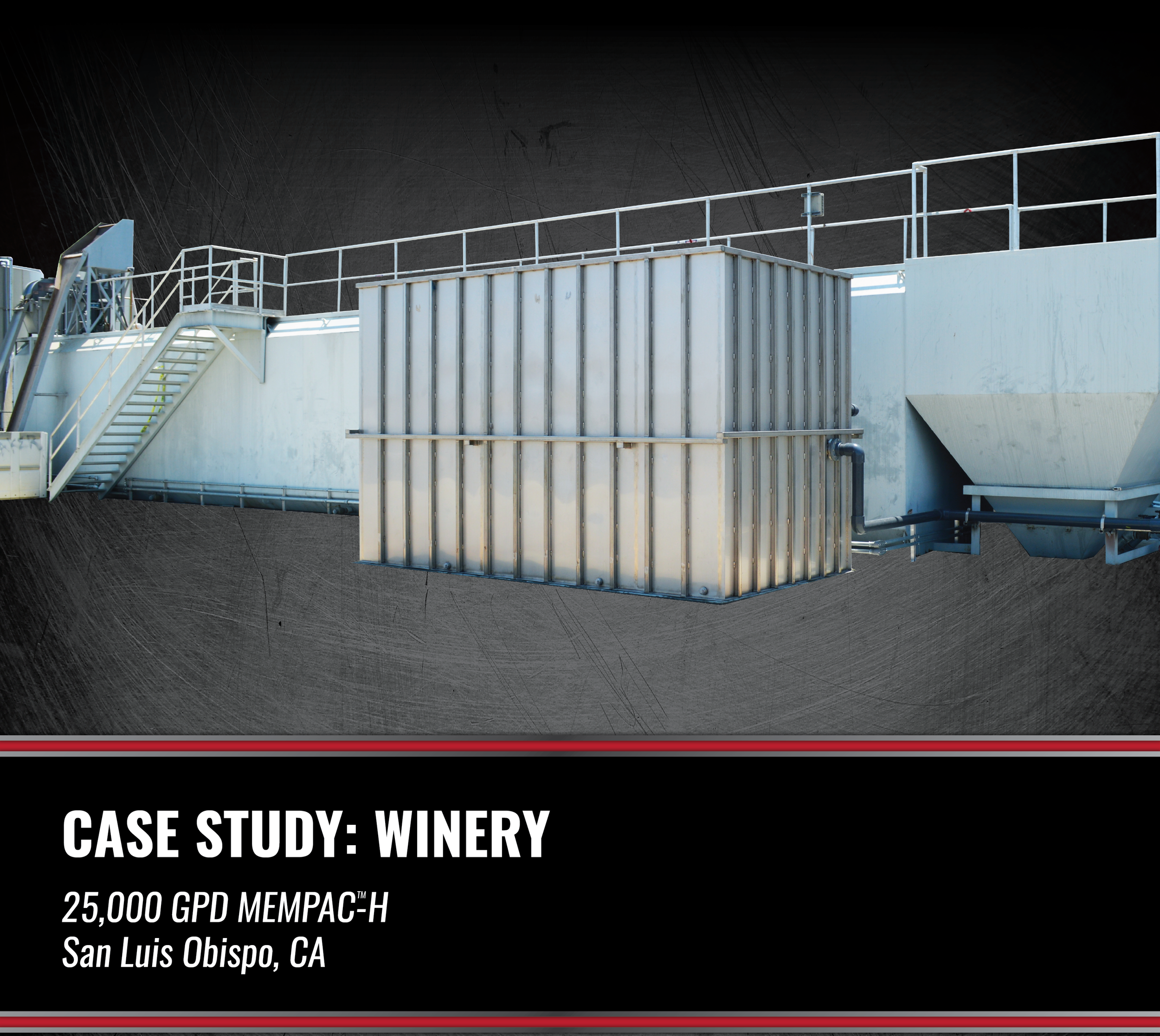

Cloacina incorporated a MEMPAC-H into an existing winery package plant

The project was necessary to bring the pretreatment system into compliance with the city’s discharge requirements

Cloacina provided an assessment of the existing facility, design of plant upgrades and installation assistance to the mechanical contractor

Cloacina incorporated an existing lift station, screening, equalization, aeration tank, aeration blowers and flow meter box into the new design and incorporated existing and new equipment into the new Motor Control Center (MCC) panel and controls system

This retrofit project was completed around the Client’s production schedule

The existing clarifier and air lift scum and sludge pumps were retained to allow the clarifier to be placed into service for extended maintenance or an emergency
