TYPICAL APPLICATIONS

Appropriate to integrate to improve most types of treatment systems.

PRODUCT OVERVIEW

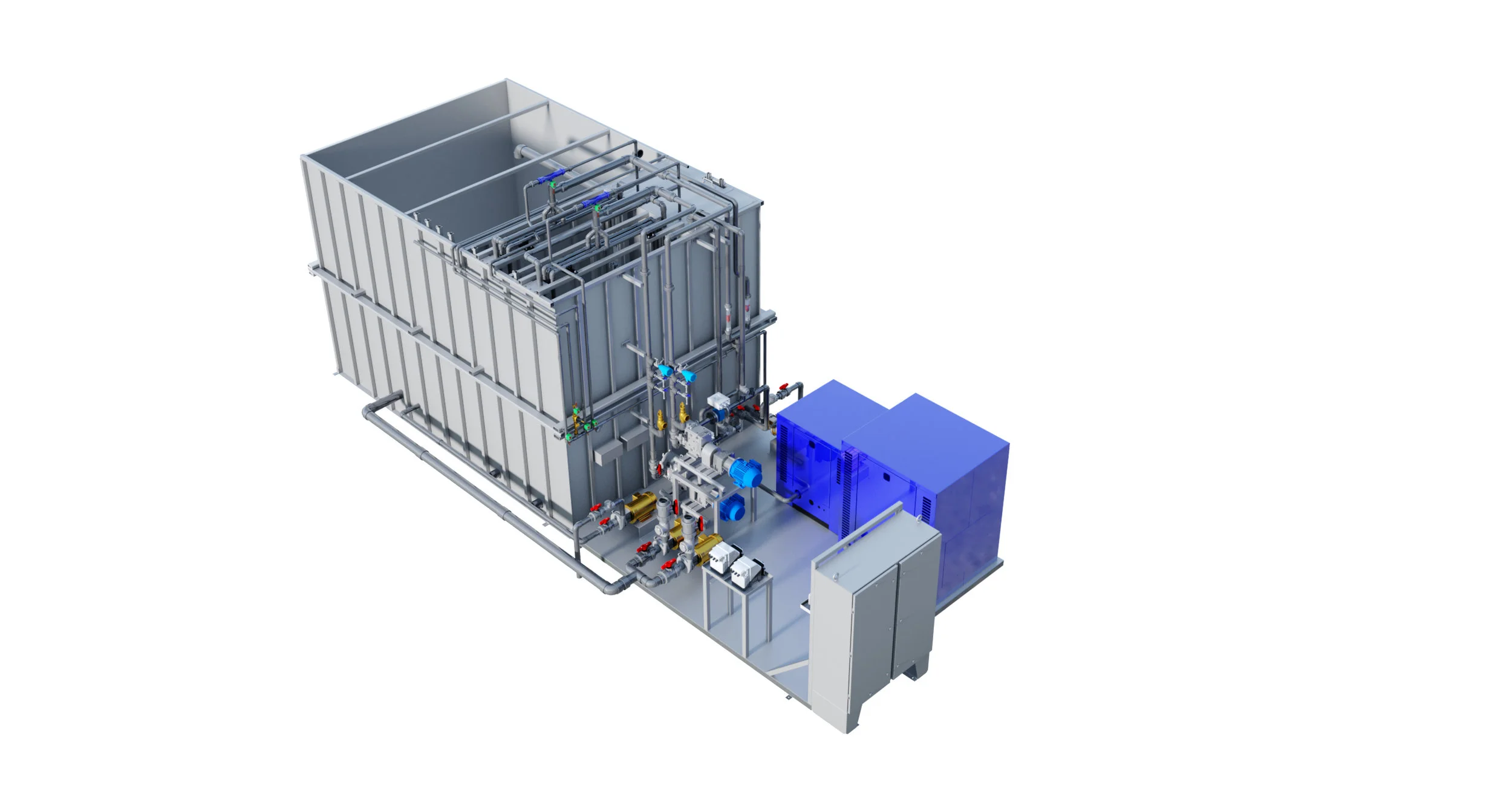

Cloacina’s Retrofit MEMPAC™ Membrane Bioreactor (RMBR) is designed for clients with existing wastewater treatment equipment that are facing more stringent discharge requirements or who now wish to reclaim their treated effluent. The RMBR treats wastewater using activated sludge with membranes for clarification as the final stage of treatment prior to ultimate disposal. Unlike Activated Sludge treatment plants that utilize a traditional clarifier, membrane treatment does not allow solids to carry over into the waste stream thereby producing significantly cleaner effluent that can be easily reclaimed for irrigation and other purposes.

Modular design allows for easy installation and incorporation into the existing treatment process. The RMBR is provided with all membrane equipment necessary for treatment. All interior and exterior components are made from high-quality, corrosion-resistant materials. All major structural components are manufactured from stainless steel. All internal components are factory-installed prior to delivery. Compact design allows for installations in small and remote locations.

STANDARD FEATURES

  • 304 stainless steel tankage
  • Supervisory Control and Data Acquisition (SCADA) Package
  • Membrane cassettes
  • Sound-attenuated, positive displacement blowers
  • Modular fine/medium bubble diffusers
  • All sensory equipment and internal pumps are mounted on Cloacina’s Slide Rail System™

OPTIONAL FEATURES

  • Buried installation
  • Influent screening
  • Effluent flow metering
  • Prefabricated controls building
  • Sludge disposal equipment
  • Energy saving SCADA package upgrades
  • Disinfection system
  • Incorporation of existing controls equipment into Cloacina’s SCADA package
  • Additional equipment sound attenuation
  • pH adjustment system
  • Automated Clean In Place (CIP) system
  • Denitrification
  • Package lift station
  • Thermal protection
  • Mobile units
  • Odor mitigation equipment
  • Automated foam control
  • Sediment/grit traps
  • Variety of grating and covers available
