PROJECT TEAM

 The Wonderful Company  Steve Beard  (310) 966-5700  www.wonderful.com

The Wonderful Company

Steve Beard

(310) 966-5700

www.wonderful.com

 Engineer  Rob Miller  San Luis Obispo, CA  805.544.4011

Engineer

Rob Miller

San Luis Obispo, CA

805.544.4011

 Installation Contractor  Robin Ransford  Arroyo Grande, CA  805.597.7100

Installation Contractor

Robin Ransford

Arroyo Grande, CA

805.597.7100


SAW Web Resources-07.png
  • Cloacina provided a MEMPAC-I to a new winery with plans for future expansion
  • The project was the first membrane bioreactor pretreatment system in the City of Paso Robles, CA
  • The city source control staff was so impressed with the system’s performance that it was recommended to another local winery that was having difficulty meeting discharge requirements
  • The Cloacina system was built in modules to allow for future growth
  • The MEMPAC-I was built on-site to meet a very short construction deadlines before the first harvest
  • After the first harvest, an irrigation pump station was added to use the treated effluent for on-site irrigation of ornamental landscaping
  • The system was expanded in 2014 to include an additional equalization tank to accommodate an increase in production without additional treatment
SAW Web Resources-09.png

INFLUENT PARAMETERS

MODEL SUPPLIED

Justin-Web Resources-40.png
Justin-Web Resources-41.png

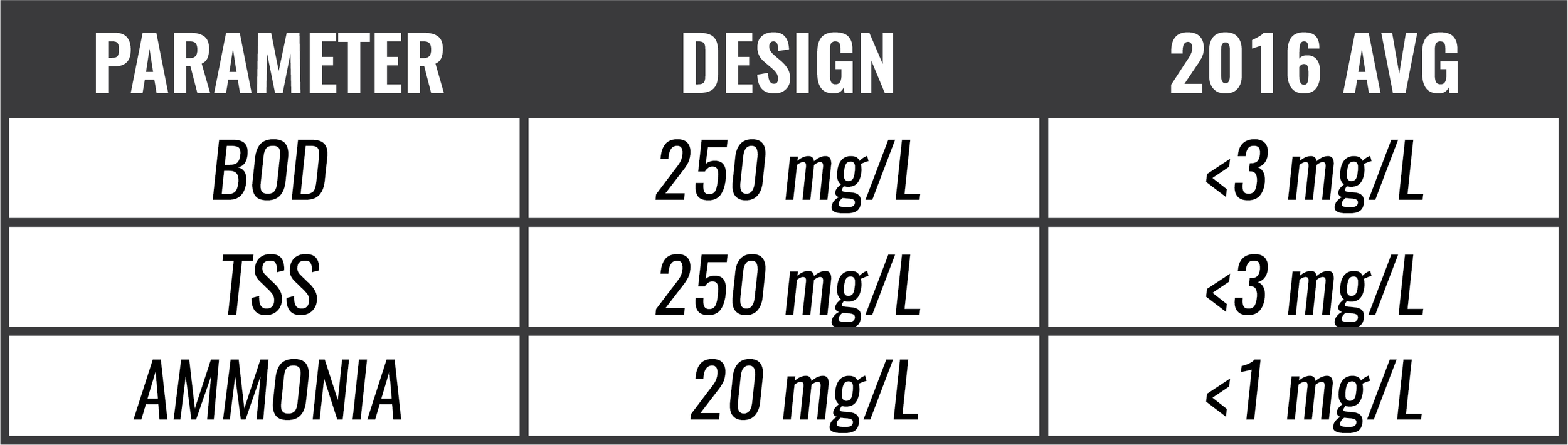

EFFLUENT QUALITY


Justin-Web Resources-42.png


Justin-Web Resources-30.png

Justin-Web Resources-33.png
Justin-Web Resources-36.png
Justin-Web Resources-32.png
SAW Web Resources-08.png
Justin-Web Resources-31.png

LIFT STATION: Package fiberglass duplex pump station which included: slide rails, pump bases, pumps, level transducer, redundant floats, valve vault, isolation valves, aluminum lid and two locking hatches

HEADWORKS: Influent flow meter, self-cleaning roto-screen, grit trap and automated pH adjustment system with sensor, pump and controls

PRIMARY TREATMENT: The client’s existing Fiber Reinforced Polymer (FRP) roughing filter was incorporated into the system design

SECONDARY TREATMENT: Fine bubble aeration diffusers, aeration blowers, dissolved oxygen sensors and RAS pump

CLARIFICATION: Flat sheet membrane, level transducer, air supply valve, auto permeate valve, permeate flow meter, online MLSS meter, clean-in-place pump, effluent pumps, effluent flow meter and sludge wasting pump

CONTROLS: Stainless steel MCC panel, touch screen controls computer, controls program and isolation switches

ADDITIONAL: Aluminum stairs and catwalk and a self-cleaning system for pH, DO and MLSS probes

Justin-Web Resources-34.png
