TYPICAL APPLICATIONS
Industrial and domestic clients with low flows.
PRODUCT OVERVIEW

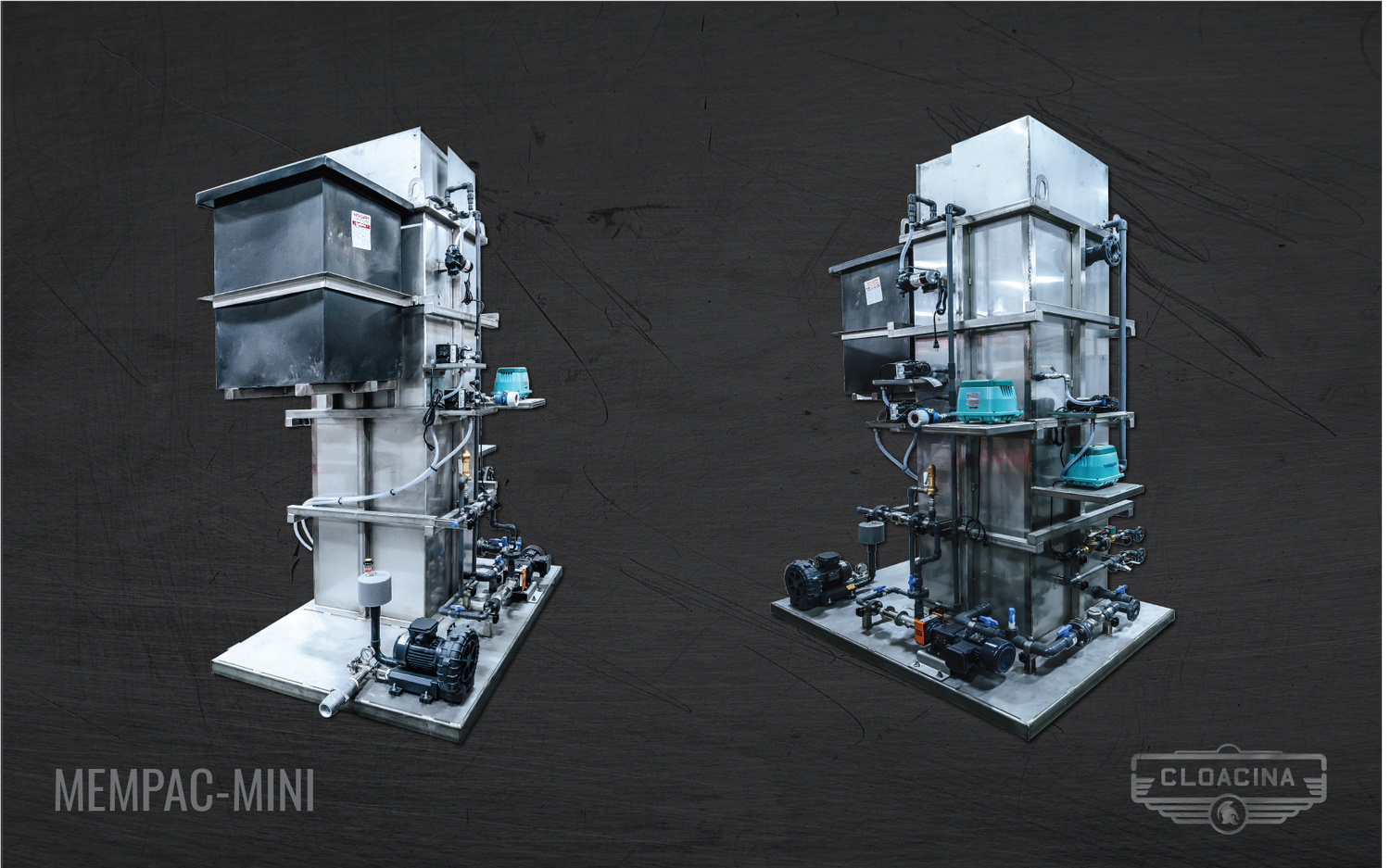

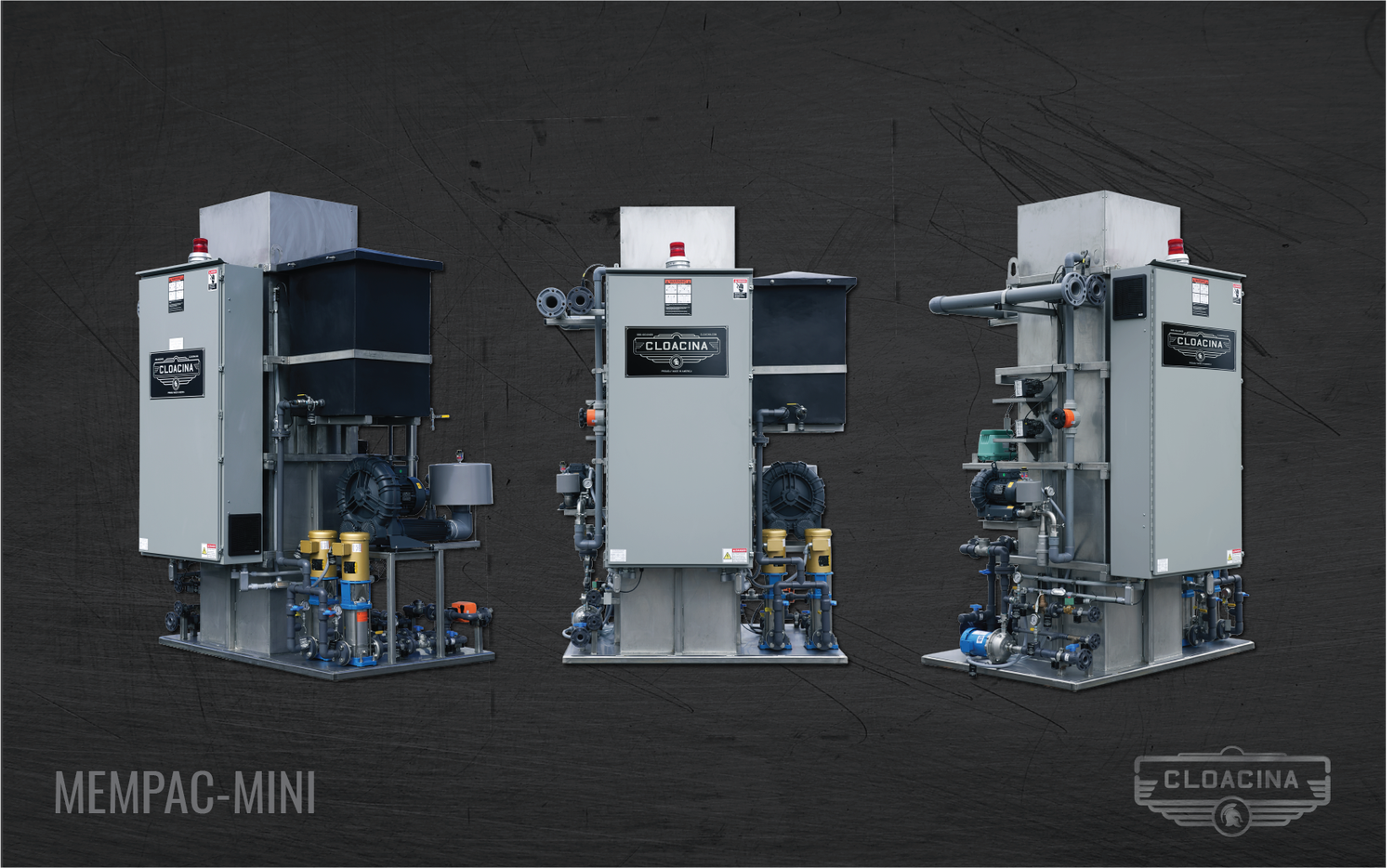

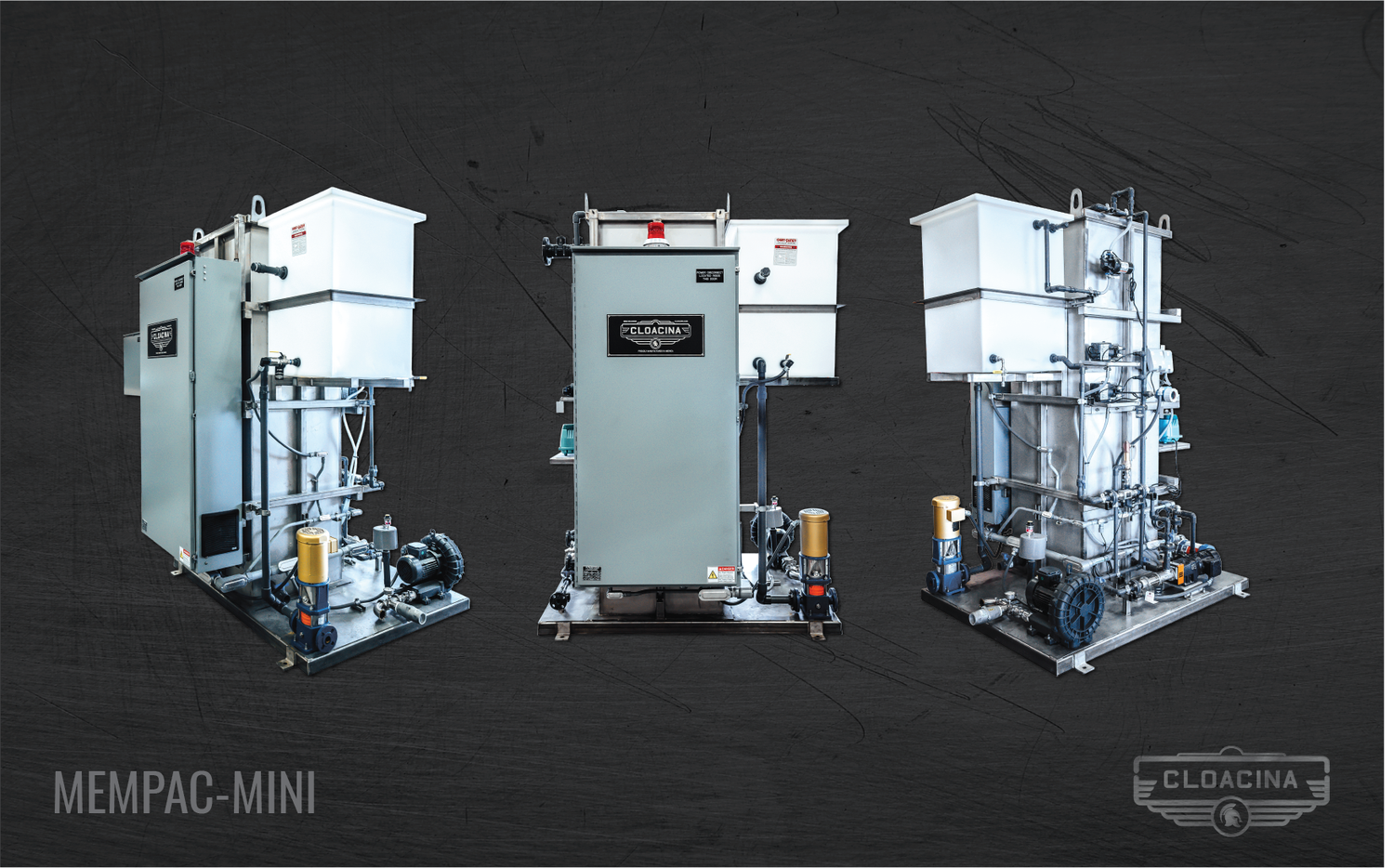

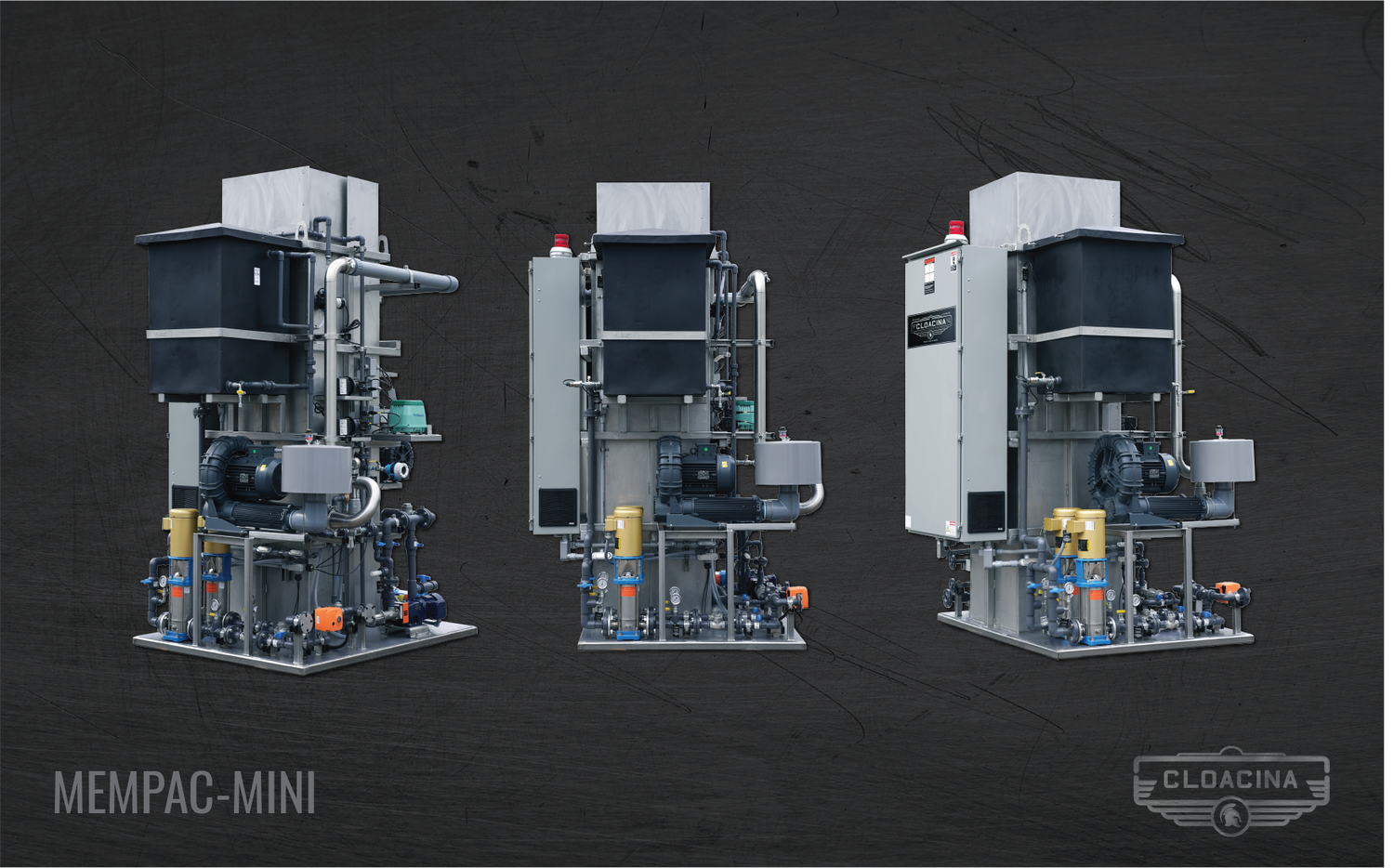

The MEMPAC-MINI is a complete, small-scale wastewater treatment system for low flow and re-use applications. A compact version of other MEMPAC models, the typical footprint for a MEMPAC-MINI equipment skid is less than forty square feet. This stainless steel treatment system is factory-assembled and includes all necessary aeration, membrane clarification and controls equipment. MINIs are designed to be incorporated into new or existing infrastructure including septic tanks, wastewater holding tanks and ponds. They can reclaim 100% of the treated effluent for re-use.
OPERATIONS AND MAINTENANCE-FRIENDLY FEATURES
Cloacina's package wastewater treatment plants are designed by operators for operators. Our Ownership Team has been building, installing, operating and maintaining water and wastewater systems for almost three decades. As a result, we know what operators and maintenance technicians need. Some of the revolutionary operations and maintenance-friendly features of our package wastewater treatment plants include:
Submerged sensory equipment is mounted on Cloacina’s Slide Rail System which provides mounting and support of equipment requiring precise installation and repeated removal for calibration and maintenance. This allows multiple pieces of equipment to be installed in tight spaces without tension on or tangling of power cords and controls cables.
The MEMPAC-M has built-in foam migration to keep foam and scum moving through the system and into a trap at the end of the treatment train
All process tankage on the MEMPAC-M has isolation gates for maintenance and emergency purposes
Equipment has pressure gauges or transducers for troubleshooting
All equipment has unions and/or flanged fittings for easy access and maintenance
All equipment is visible and easily accessed, maintained and replaced
We offer more sensory equipment and monitoring points on our systems than any other manufacturer
All models include self-cleaning probes
Our controls program provides:
Graphing
Trending
Charting
History
We provide built-in logic for oxygen control, nitrogen reduction and sludge management
STANDARD FEATURES
Tanks and equipment skid are fabricated from stainless steel
Cloacina’s intuitive controls system
Powder coated controls enclosure
Process tank blower
Return Activated Sludge (RAS) pump
Permeate pump
Membrane filtration equipment
Automated Clean-In-Place (CIP) system
Clear well
OPTIONAL FEATURES
Influent lift station
Process tankage
Above or below-grade process tanks
pH adjustment system
Effluent pump(s)
Disinfection equipment
Anoxic treatment
Sludge management equipment
Stainless steel controls enclosure
Controls system upgrades, including:
Dissolved Oxygen (DO) controls equipment
Mixed Liquor Suspended Solids (MLSS) monitoring
